Push-to-Talk over Cellular Handheld Smart Device

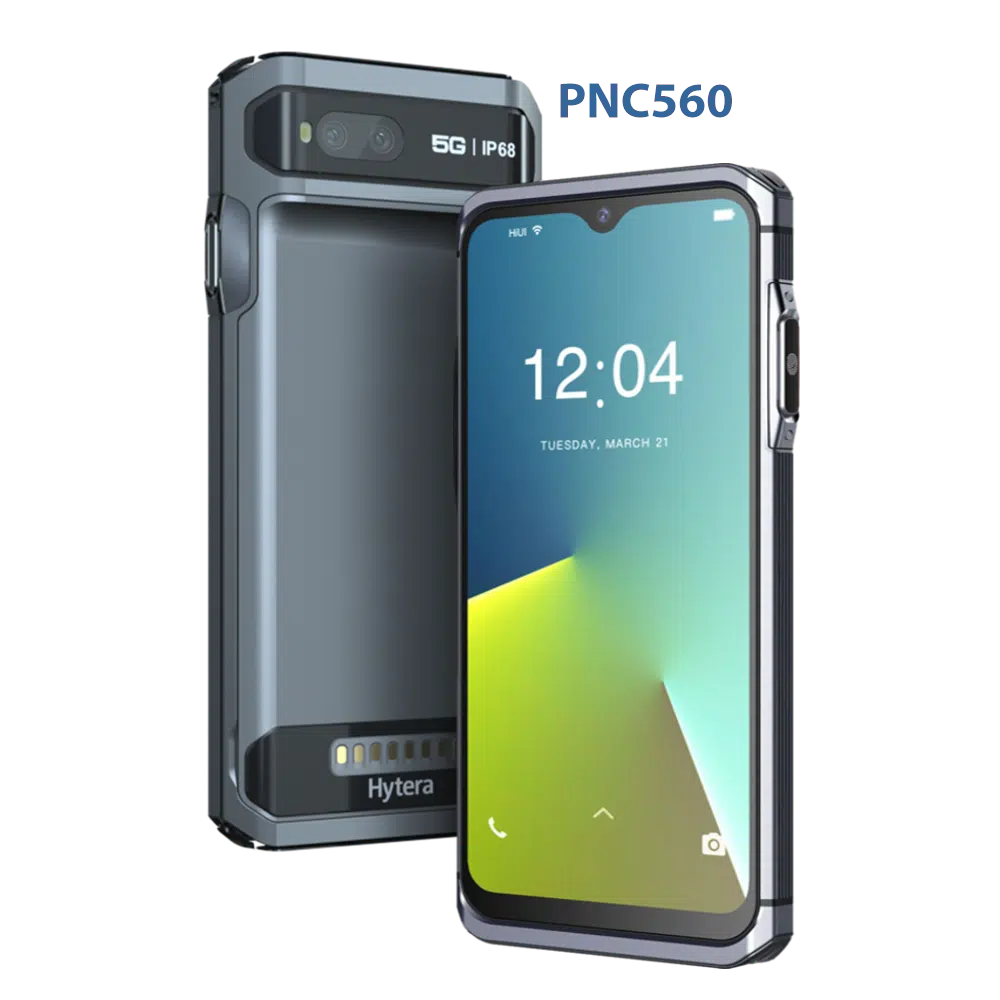

The Hytera PNC560 is a Push-to-Talk over Cellular (PoC) radio and smart handheld device engineered for seamless nationwide business operations and effective remote workforce communication. This versatile device merges the functionality of a compact mobile computer and a data collection terminal with the durability, superior audio quality, and instant group communication capabilities expected from a professional PoC radio. Additionally, the PNC560 is equipped with an integrated infrared scanner, making it ideal for applications in warehousing, inventory management, and the medical field.
- Powerful Handheld Smart Device and Push-to-Talk Radio
- Built-In Infrared Barcode Scanner
- Industry-leading Voice Quality with Digital Noise Suppression
- Supports Instant Group Voice and Video Calling and Texting
- Rugged and Purpose Built for Professional Communications
- Seamless Switching between Cellular and Wi-Fi Networks
- Runs Android Business Apps
The PNC560 facilitates Push-to-Talk-over-Cellular (PoC) communication by leveraging existing 4G, 5G, and LTE mobile network operator infrastructures, as well as Wi-Fi networks.
Functions
NATIONWIDE COVERAGE
National wide-area communication with mobile LTE cellular connectivity
BUILT-IN WI-FI
Built-in 2.4GHz and 5GHz Wi-Fi supports in-building communications with seamless switching to LTE networks when outside Wi-Fi range
INSTANT GROUP AND INDIVIDUAL CALLING
Dedicated Push-to-Talk button initiates instant voice or video calls to groups or individuals
POWERFUL DEVICE ENGINE
QualComm 8-core platform provides stable and smooth multi-task operations
VIDEO CALLING
Supports user-initiated video calls and sharing high-resolution images with the Hytera Dispatch application and other PoC devices
TEXT AND AUDIO MESSAGING
Send, receive, and view text messages between dispatcher and other Hytera PoC devices, also record and send audio messages
SECURITY PROTECTION
The PNC560 offers advanced biometric security, including fingerprint and facial recognition, enabling quick and secure device access. Android-based security features help safeguard against unauthorized access as well as viruses and hacker attacks. Additionally, the device includes a secure file storage safebox to further protect sensitive data.
BUILT-IN BARCODE SCANNER
The integrated infrared scanner head quickly reads both 1D and 2D barcodes, as well as QR codes, in just milliseconds from distances of up to two feet. It is ideal for barcode scanning and logistics operations. An optional Android Application Package (APK) is also available, allowing seamless integration of the scanner’s functionality with other applications.
THREE HIGH-DEFINITION CAMERAS
Three separate high-resolution cameras, including a screen-facing wide-angle camera and two rear-facing cameras with telephoto and wide-angle lenses.
LONG-LIFE BATTERY
Powerful 5,040mAh Lithium-Ion Polymer battery delivers up to 15 hours of continuous operation and supports quick charging by desktop charger and USB
DUAL SIM
Dual SIM cards provide flexibility for two network data plans
ULTRA-RUGGED AND DURABLE
Compliant with MIL-STD-810-G for shock and vibration, and IP68 rated to be impervious to dust and fine powders, and can be submerged in 5 feet of water for 30 minutes
ANDROID 12 OPERATING SYSTEM
Supports the latest Android OS business apps for, inventory management, security, and unified operations and communications
ERGONOMIC DESIGN
Ergonomic design with easy-access buttons
6.3 INCH TOUCHSCREEN DISPLAY
Large screen enables multiple simultaneous operations, supports wet hand and glove touch interaction, and provides clear display in bright sunlight
GPS POSITIONING
GPS enables real-time tracking and positioning for the Hytera Dispatch application
BUILT-IN SCANNER
The PNC560 is equipped with a built-in infrared scanner head capable of reading both 1D and 2D barcodes, as well as QR codes, within milliseconds from distances of up to two feet. This all-in-one device offers exceptional convenience for applications in warehousing, delivery services, inventory management, and healthcare settings. Powered by the Android operating system, it supports a wide range of scanner applications to enhance functionality and adaptability.
STATE-OF-THE-ART CAMERAS
The PNC560 is equipped with three high-resolution cameras: an 8MP front-facing wide-angle camera, an 8MP telephoto lens, and a 48MP wide-angle rear lens. It supports low-light photography and HDR (High Dynamic Range), ensuring clear images in nighttime or high-contrast lighting conditions. Additionally, it utilizes an advanced lens stabilization algorithm to minimize blurring caused by camera movement.
Technical Specifications
Standards and Frequencies
| 5G | N1/N2/N3/N5/N20/N28/N41/N66/N71/N78 |
| LTE-FDD | B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28 |
| LTE-TDD | B38/B39/B40/B41/B2/B43/B48 |
| WCDMA | B2/B4/B5/B8 |
| GSM | 850/900/1800/1900 |
| Wi-Fi | 2.4GHz/5GHz 802.11b/g/n/ac |
| Bluetooth | BT 5.0 |
| Positioning System | GPS/Galileo/BDS/A-GPS |
| Audio Formats | MP3, eAAC, G.711, Windows Media Audio 9/10/Pro, AMR-NB, AMR-WB |
| Image Formats | JPG, GIF, BMP, PNG, WebP |
| Video Formats | 1080p@30fps, MPEG-4, 3GP, P0, H.264, VP9, BP/MP/HP/ASP, DivX 4x/5x/6x |
Transceiver
| Audio Power Output | 3W rated |
| Microphone | Microphone with AI-based noise suppression |
Environmental
| Operating Temperature | -4°F to +140°F (-20°C to +60°C) |
| Storage Temperature | -22°F to +158°F (-30°C to +70°C) |
| ESD | IEC 61000-4-2 (Level 4) 8kV Contact, 12kV Air |
| Dust and Water Ingress | IP68 Standard, Full submersion at 5 feet for 30 minutes |
| Humidity | Per MIL-STD-810 C/D/E/F/G Standard |
| Shock and Vibration | Per MIL-STD-810 C/D/E/F/G Standard Drop Proof to 5 Feet |
| 3GPP | MCX Release 15, Standard: 400,000 presses |
Certications
| Environmental | RoHS/REACH |
| Certication | FCC, CE, IC, GMS |
General
| Battery | 5,040mAh (Li-Ion Polymer) |
| Battery Life | Up to 15 hours continuous use |
| Weight | 9.5oz (270g) |
| Dimensions (H x W x D) | 6 9/16” x 3 1/32” x 1/2” (167 x 77 x 13mm) |
| Operating System | Android 12 |
| Memory | 4GB RAM + 32GB ROM |
| Card Slots | 2X Nano SIM, or 1X Nano SIM and 1X MicroSD 128Gb |
| Display | 6.3” Gorilla Glass, FHD+, 2340×1080, Supports Multi-Touch, Wet, and Glove Touch |
| Camera | 8MP Front Facing, 8MP Rear Facing Telephoto, and 48MP (via software algorithm) Wide Angle Rear Facing |
| Flash / Flashlight | Supported |
| Ports | USB Type C Charger Interface, 3.5mm Audio Interface |
| Physical Interface Buttons | 1x Push-to-Talk, 2x Volume (+/-), 1x Programmable Button for Scanning or other functions, 1x Power with Fingerprint Recognition |
| Sensors | Fingerprint, Acceleration, Gravity, Gyroscope, Geomagnetic, Infrared, Light |
