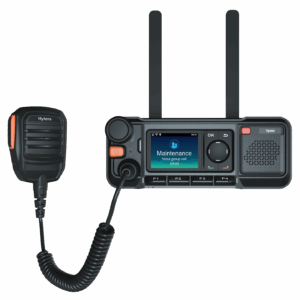

The Hytera MNC360 Push-to-Talk over Cellular (PoC) mobile radios are professional-grade communication devices designed to deliver clear, immediate push-to-talk connectivity, instant group calling, and real-time location tracking. These features ensure reliable and efficient fleet dispatching. Unlike cell phones, tablets, or handheld devices, the MNC360 meets DOT regulations, making it a legal and compliant option for safe in-vehicle communication while driving.
- Nationwide Coverage with 4G/LTE Networks
- Industry Leading Voice Quality with Digital Noise Suppression
- Supports Instant Group and Individual Calling
- Compact and Rugged Radios that are Easy to Use
- GPS Location Tracking for the Web-based Dispatching App
The MNC360 enables Push-to-Talk over Cellular communications using existing 4G/5G/LTE Mobile Network Operator infrastructure and Wi-Fi networks.
NATIONWIDE COVERAGE
A cellular SIM card provides access to nationwide mobile networks with reliable 4G/LTE connectivity. Dual LTE paddle antennas enhance reception by improving RX sensitivity by 3dB, ensuring excellent signal quality even in areas with weak coverage.
INDUSTRY LEADING AUDIO QUALITY
The MNC360 is equipped with advanced digital noise cancellation technology, effective distortion and howling suppression, and a uniquely patented acoustic speaker cavity. Its powerful, forward-facing 4-watt high-volume speaker ensures exceptional voice clarity, even in noisy environments.
COMPACT AND EASY TO INSTALL
Weighing just 10.6 ounces, the MNC360 boasts a compact design that allows for versatile installation options. Its rotating mounting bracket enables secure attachment either on top of the dashboard or on a vertical surface within the vehicle. Equipped with highly sensitive, dual LTE antennas, the MNC360 often eliminates the need for an external antenna—depending on its placement inside the vehicle.
CLEAR AND BRIGHT DISPLAY
The LCD display screen is easily visible even in bright sunlight.
ANDROID OPERATING SYSTEM
The MNC360 is powered by the Android mobile platform.
FLEXIBLE INTEGRATION
With the standard API and SDK, the MNC360 communications capabilities can be integrated into mobile fleet management and telematics applications.
INSTANT GROUP AND INDIVIDUAL CALLING
Pressing the Push-to-Talk button on the handheld microphone enables voice calls to both groups and individual users. The Hytera Dispatch web-based communications and location tracking application further supports instant group calling to the MNC360 and other PoC devices, ensuring seamless and efficient communication.
GPS POSITIONING
The highly precise external GPS antenna allows for accurate speed monitoring and real-time location tracking with breadcrumb trails and geofencing capabilities when used with the Hytera Dispatch application.
DESIGNED FOR SAFETY
Keep your eyes on the road with raised tactile buttons, piano-style keys, and a lightweight handheld microphone designed for safe, easy push-to-call operation. The MNC360 is equipped with speeding and driver fatigue alerts, as well as an emergency call button that enables instant one-touch emergency communication with dispatchers and other PoC devices.
BUILT-IN WI-FI
Built-in Wi-Fi for flexible network access and using the MNC380 as a dispatch console.
RICH WITH ACCESSORIES
The MNC360 is equipped with a 3.5mm audio jack for wired earpiece accessories, a Micro USB 2.0 port for powering and connecting a wide range of external devices, integrated Bluetooth for wireless accessories such as hands-free microphones, and a 2-pin port for connecting an external loudspeaker.
The MNC360 enables cost-effective fleet communications and dispatching with fast and easy deployments.
4G/LTE cellular networks offer dependable nationwide coverage without the need for investment in traditional radio network infrastructure or FCC frequency licensing.
The MNC360 delivers instant nationwide group and individual calling right out of the box.
Technical Specifications
General
| Weight | 10.6oz (300g) |
| Dimensions | (H x W x D) 6 5/8” x 2 5/8” x 1 1/2” (170 x 66 x 39mm) |
| Display | 2” LCD 320×240 |
| Operating System | Android 7.1 |
| RAM Capacity | 1 GB |
| ROM Capacity | 8 GB |
| Input Voltage | 9-15V DC |
| Speaker | 4W |
| Operating Temperature | -22°F to +167°F (-30°C to +75°C) |
| Port Interfaces | Two LTE antenna ports, 2-pin external speaker port, GPS antenna port, MicroUSB 2.0 connector, 3.5mm audio accessory port, secure10-pin aviation port for handheld mic, power connector |
| Card Slots | Two Micro-SIM slots, TF Card slot (up to 128 GB) |
Environmental
| Operating Temperature | -4° to +140° F (-20° to +60° C) |
| Storage Temperature | -40° to +185° F (-40° to +85° C) |
| ESD | IEC 61000-4-2, (ESD) ± 12 kV (air); ± 8 kV (contact) |
| IP Rating | IP54 for water and dust resistance |
Standards and Frequencies
| LTE Frequency Bands | FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28 – TDD-LTE: B38/B39/B40/B41 (2496–2690 MHz) GSM: 850/900/1800/1900 – WCDMA B1/B2/B3/B4/B5/B8 |
| Wi-Fi | 2.4GHz 802.11b/g/n |
| Bluetooth | BT 4.2 |
| Positioning System | GPS (A-GPS)/BDS |
| Certifications | FCC/CE/IC |
